Product Highlights for the 2011-2014 6.2L Ford F-150 Raptor Supercharger Roush R2300 Phase 2 Kit - 590 HP:

Generates 590 horsepower and 590 lb-ft of torque (179hp gain and 156lb-ft gain over stock)
R2300 Supercharger featuring Eaton's cutting-edge TVS Technology with Twin Vortices Series
Fuel charging assembly includes Roush-designed upper and lower aluminum intake manifolds
Highly efficient intercooler system with dual-core low temp radiator, degas bottle, high-capacity air-to-water intercooler, and abrasion-resistant sleeved hoses
Equipped with a twin 60mm throttle body and throttle body spacer
Includes Roush cold air induction system with injection-molded air box, blow-molded clean air tube, and high-flow, washable, premium air filter
Comes with a 100mm MAF (Mass Air Flow) tube/housing
Unique high-flow fuel rail with 47lb injectors
Features a 75mm pulley
Requires the Roush Diagnostic Tool (RDT) software for installation
Compatible with 2011-2014 Ford F-150 6.2L-2v engine
Comes with a 3-Year/36,000 Mile Parts warranty (Roush Supplied Parts Only)
Now 50-State legal emission compliant for 2011-2014 / CARB E.O.# D-418-23
NOTE: Vehicle Maximum speed is NOT modified from the production configuration, with the installation of this kit.

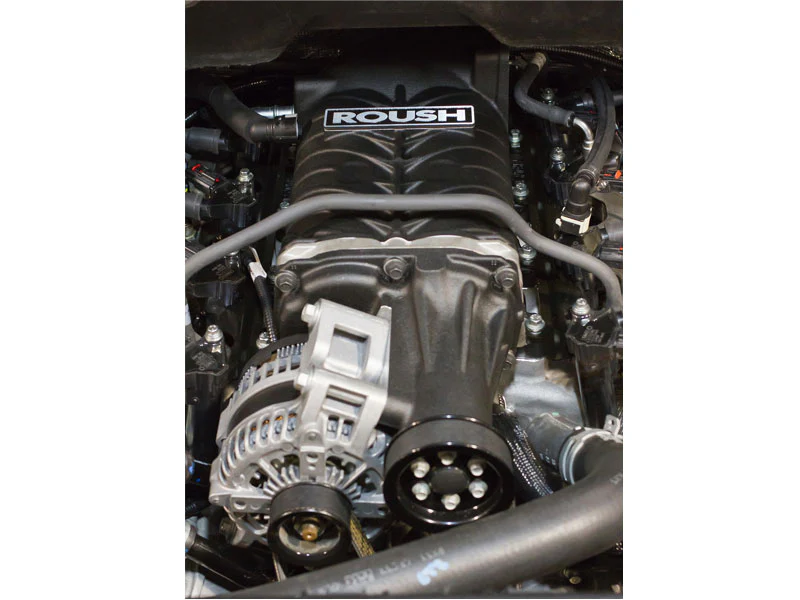

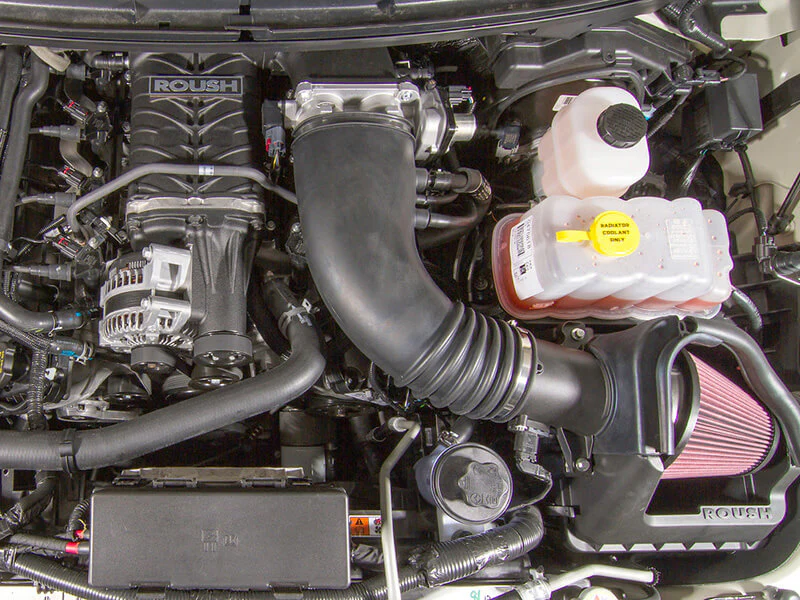

Unleash the power of your 2011-2014 Ford F-150 Raptor 6.2L-2v V8 engine with the Roush® F-150 Supercharger Kit, boosting output to a remarkable 590 HP and 590 LB/FT of torque. This represents a substantial increase of 179 HP and 156 FT/LB over the stock performance.

The Roush 2011-2014 6.2L F-150 Raptor Phase 2 Calibrated Supercharger Kit is a product of the TVS (Twin Vortices Series) line of superchargers developed by Roush, renowned for its superior performance and reliability. This same line of superchargers has been successfully utilized in Roush-built vehicles for years.

The Roush R2300 supercharger incorporates Eaton's cutting-edge Twin Vortices Series technology (TVS) rotating assembly, delivering greater power and improved fuel efficiency while maintaining a compact design for uncompromised performance.

The Roush R2300 TVS supercharger operates as a roots-type, positive displacement supercharger with twin four-lobe rotors that are twisted 160 degrees, in contrast to the original Eaton rotating assembly with three lobes twisted 60 degrees. This innovative design, combined with redesigned air inlet and outlet ports, significantly enhances thermal efficiency, increases volumetric capacity, allows for higher operating speeds, optimizes airflow into the engine, and enhances noise and vibration characteristics.

Distinct from turbocharging or centrifugal superchargers, the Roush R2300 TVS supercharger delivers instant throttle response and generates increased power throughout the engine's entire powerband.

The key components of this Roush R2300 TVS Supercharger Kit include:

This kit now incorporates the Roush Flash Voucher card for calibration via the Roush Diagnostic Tool (RDT) software and a pass-thru device. If you lack access to an approved pass-thru device, you have the option to send your PCM back to Roush for flashing, subject to an additional $100.00 fee.

Warranty

This kit is protected by an extended parts warranty (ROUSH Supplied Parts Only), which is for 3 years or 36,000 miles from retail purchase date.

*Power figures are based on optimal conditions using 93-octane fuel. Actual results may vary depending on octane, intake air temps, humidity, manifold charge temps, gearing, wheel/tire combination, and the type of dynamometer used.

Performance Parts

2011-2014 Roush 6.2L F-150 Raptor Supercharger R2300 Phase 2 Kit - 590 HP

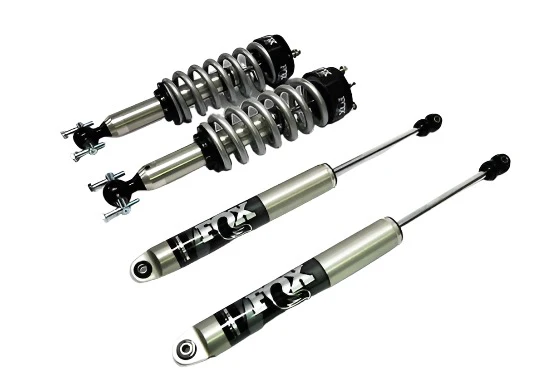

2019-2023 Roush Ranger Fox Suspension Kit
